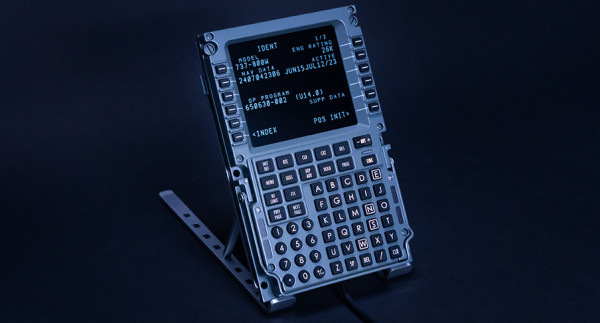

Cockpit Simulator - CS 737X CDU (v2)

CS 737X CDU, now in its 2nd generation with a full metal CNC machined shell that provides a 1:1 replica of the real aircraft. The buttons are made of silicone, identical to those on the real aircraft, providing a tactile feel close to the actual avionics parts. It features a plug-and-play operation with no software configuration. Power and data are transferred via a single USB cable.

The device works as a standalone plug and play module and is compatible with all major flight simulator platforms.

To connect it to the simulator, simply plug the included USB cable into a USB port (no need for an HDMI/VGA connection), download and start the Bridge Software - and you are ready to fly!

Features

• Mass Production Design
• All-metal housing – crafted with Aluminum CNC Machining
• Electrostatic spraying enclosure
• Replicated metal handle appearance
• Replicated annunciator windows and colors
• Highly realistic appearance and texture of real aircraft avionics parts
• Improved buttons for a more realistic feel
• Plug and play, no setup required
• Only a single USB Type-C connector
• No video transmission cable required
• Full color display
• Thin and lightweight appearance
• Meets EASA FTD Level 1 qualification requirements
• Meets FAA FTD Level 5 qualification requirements

Package Contents

• 1x 1.5m USB Type-A to Type-C cable
• 1x Bracket for placing on desktop stand
• 2x Screws for bracket mounting
• 2x Screw washers
• 1x Desktop stand
• 1x CS 737X CDU (v2)

Connectors

• 1x USB 2.0 Type-C
• 1x DC 3.5mm x 1.35mm power input (DC 9 to 24V, ≥ 0.8A)

SUPPORTED AIRCRAFT LIST

• ProSim
• ProSim737
  (with bridge software v2024.4.0 and later)
  (requires ProSim737 version 3.27 and above)
  (requires ProSimCDU running with role “Captain CDU” for the left side)
  (requires ProSimCDU running with role “F/O CDU” for the right side)
• ProSimB38M > COMING SOON
  (requires ProSimB38M version 1.27 and above)
• Microsoft Flight Simulator
• PMDG 777 (all variants with bridge software v2024.5.0 and later)
• PMDG 737 (all variants with bridge software v2022.2.0 and later)
• X-Plane 12 | X-Plane 11
• B737-800X ZIBO Mod (with bridge software v2022.1.0 and later)
• Threshold LevelUp 737NG (with bridge software v2022.1.0 and later)
• IXEG 737 Classic (with bridge software v2022.1.0 and later)
• Prepar3D V1-V5 | Flight Simulator X
• PMDG 737NGX
• PMDG 737NGXu
• PMDG 747-400
• PMDG 747-8
• PMDG 777 (all PMDG variants with bridge software v2022.1.0 and later)
• iFly Jets - The 737NG (with bridge software v2023.1.1 and later)

• Windows 10/11

MANUFACTURER
Hainan Dingsan Technology Co., Ltd.
No.16 Guomao North Road, Jinmao Street, Longhua District, Haikou, Hainan, China
info@cockpit-simulator.com

RESPONSIBLE PERSON IN THE EU
Aerosoft GmbH
Lindberghring 12, 33142 Büren, Germany
info@aerosoft.com

WARNINGS
Keep devices away from water, out of reach of children and pets.
